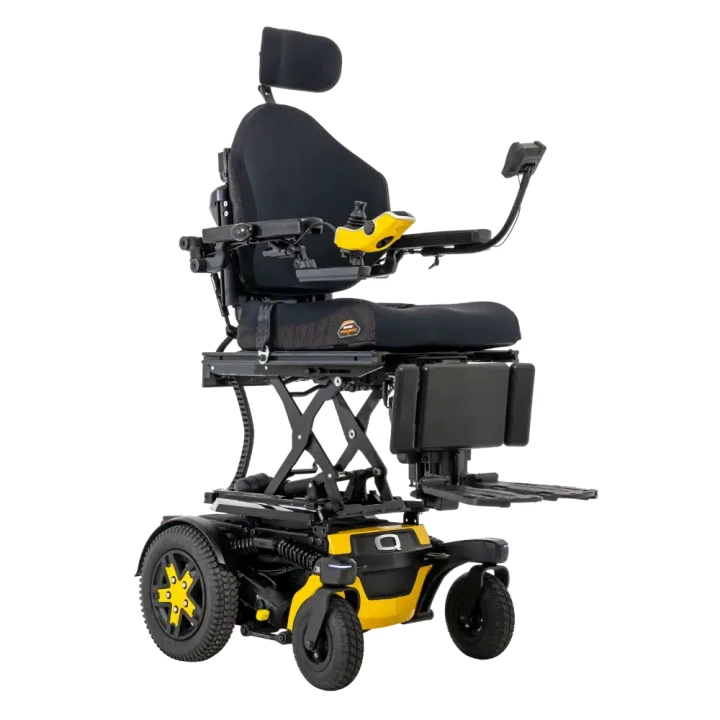

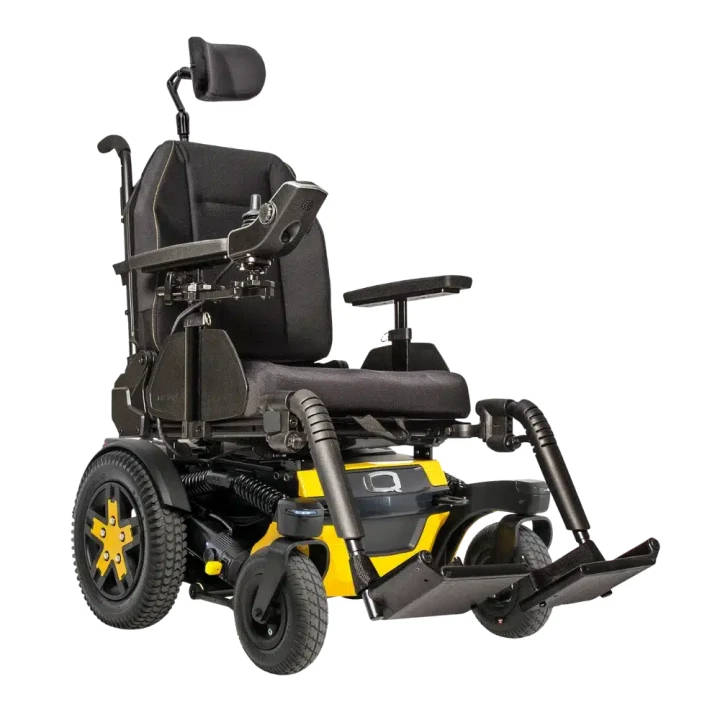

Quantum R-Trak Powerchair

R-Trak

Range Up To 16 mi
Max. Speed 7.0 mph
Weight Capacity 21 st 6 lbs

The Quantum R-Trak Power Wheelchair gives you the smoothest and most controlled ride you’ve ever experienced. It combines the stability of a rear-wheel drive with an easy-to-operate ride across all different terrains. Showcasing an impressive Smooth Ride Suspension (SRS) system, this powerchair promises an all-over exceptional performance. Our R-Trak has a well-balanced centre of gravity, excellent stability, increased traction on uneven surfaces and a reduced impact on environmental obstacles. This means that you can have a comfortable and reliable ride every day, no matter the terrain you’re navigating. It’s the perfect option for those with highly active lifestyles because it never holds you back.

Our Quantum R-Trak Wheelchair also boasts a sleek design that comes with new detailing for an elegant yet powerful solution. With a compact 615mm base, it offers improved manoeuvrability compared to traditional rear-wheel drive chairs. This means that you can freely explore the outdoors with no limitations, while also navigating tight indoor spaces with ease! The R-Trak gives quality, premium features to make every ride smooth and comfortable, such as 10 inches of Powered Safe Seat Elevation – all while reaching a top speed of 7mph (3.5mph when elevated). Alongside this, you gain 50 degrees of tilt, making it one of the best elevating powerchairs you can have.

The Benefits of Our Quantum R-Trak

Our Quantum R-Trak design offers numerous benefits for daily, active use. It has impressive standard features that include 4-pole motors, integrated switch lights and a choice of 12 colours to suit your needs and personalise the powerchair to you. It’s also compatible with the NE+ Controller or Q-Logic 3 expandable drive control system, and gives you a range of seating options, including TRU-Balance 3, Tru-Balance Flex or Contoured Seating. This means that you can have the best possible ride for you that keeps you comfortable and safe to enjoy all sorts of activities.

With a top speed of 7mph and 3.5mph when elevated, the R-Trak is built for speed and endurance through any terrain and any activity. This powerchair can keep up with your lifestyle while never compromising on your comfort, thanks to the high-quality suspension system. You can get around easily on even the most uneven surfaces without feeling a thing. Our Quantum R-Trak Power Wheelchair is truly engineered for everyday use, delivering comfort, traction and accessibility to live life to the fullest.

Specifications & Features

Specifications

Drive Configuration	Rear-wheel Drive
Weight Capacity	3 st 6 lbs
Turning Radius	25.7 in. (653 mm)
Length	34.8" (884 mm)
Width	24.2" (615mm) with 14" wheels 26.2 (665mm) with knobby wheels
Ground clearance	3.97" (101 mm)
Max. Obstacle Climbing	2.36" (60 mm)
Max Slope Rate	7.5° (13.2%)
Base Weight	58 kg
Castor wheels	9" solid
Drive wheels	14" x 3" / 14" x 4" knobby - Solid or Pneumatic
Anti-tip Wheels	4" (102 mm)
Battery Size	2x 70 Ah
Speed	4 mph (6.44 kmh) / 6 mph (9.65 kmh) / 7 mph (11.26 kmh)
Motor Packages	2-Pole / 4-Pole, Rear-wheel
Suspension System	SRS (Smooth Ride Suspension)
Electronics	Q-Logic NES / Q-Logic 3
Seats	Contour / TB Flex / TB3
Seat Width	12" - 22"
Seat Depth	12" - 22"
Powered Positioning	Tilt / Recline / Lift / Legs
Seat Lift	10" lift @ 3.5 mph
Standard Features	USB charger port and front & rear LED fender lights
Crash Tested	Yes
Colour Range	14 vibrant colour options

Features

4-pole motors with top speed of 7 mp/h, and 3,5 mp/h when elevated
Smooth Ride Suspension (SRS) for a smooth, stable ride over obstacles
Narrow 615 mm base for enhanced manoeuvrability
Integrated LED lighting in front casters and fenders for visibility
Optional 10″ Safe Seat Elevation, Quantum backup camera, and vent tray accessory
