R82 Kudu
Kudu is a practical indoor and outdoor wheelchair which combines form and functionality to provide the right fit and support for a comfortable posture.
It comes in 4 sizes and has many features that are adjustable as the child grows. Kudu has been designed to offer exceptional adjustability. Backrest height and seat depth can be extended without having to change cushions. The cushions have a one-piece removable upholstery that provides comfort for the child and brings simplicity to the overall design.
A significant feature on the Kudu is the self-centering tilt-in-space that provides effortless tilting of the seat while maintaining optimum balance. Kudu remains stable with the back reclined and the self-centering tilt-in-space activated. Ergonomic considerations have been taken into account to enhance the child’s comfort and minimize the caregiver’s effort when manoeuvring the wheelchair. Kudu is designed with a facility to change the back recline angle without tools. For convenient transportation purposes, the back rest can be collapsed horizontally and the wheels can be removed.
Features
Growth adaptable

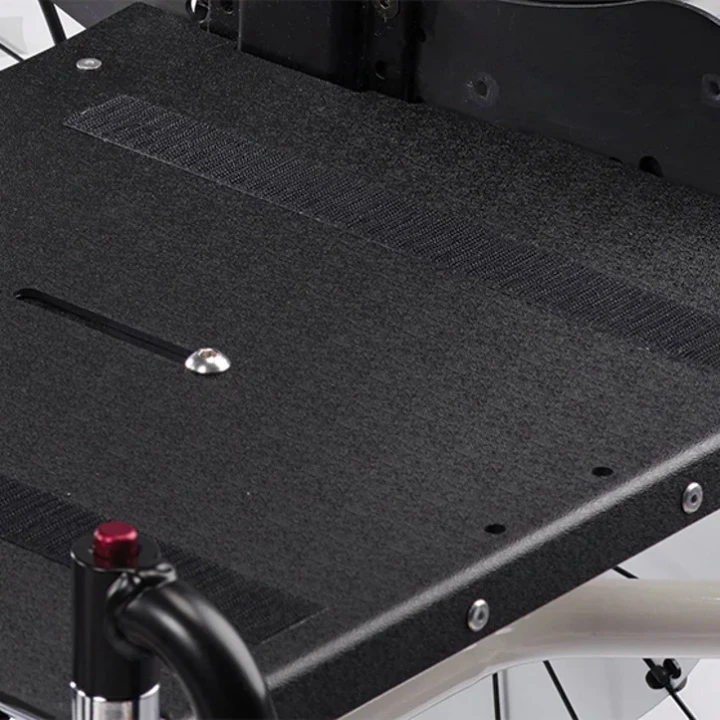

The base of the seat and the back rest are equipped with a mechanism that makes it possible to adjust height and depth as well as mount fix-locks for vest and belts.

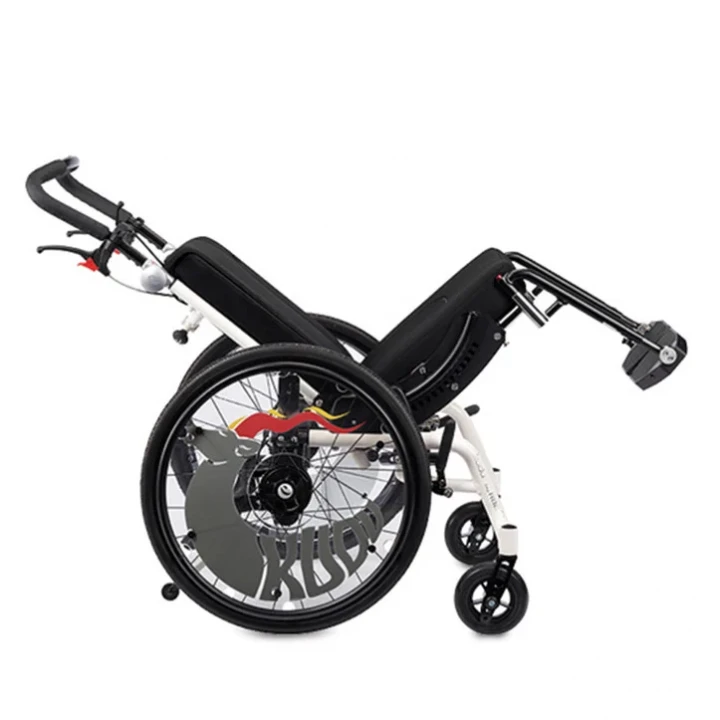

Tilt-in-space and back recline

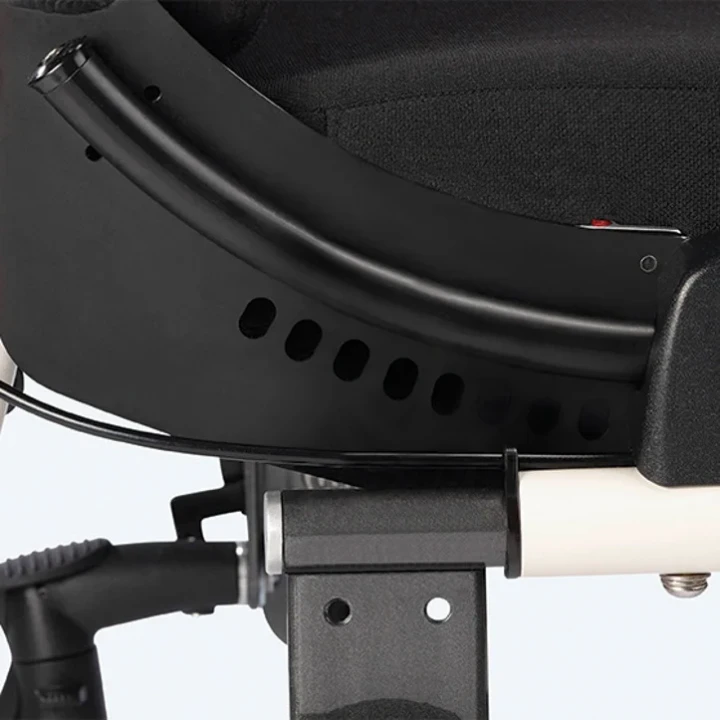

The curved tilt-in-space beam ensures the stability of the wheelchair and allows adjustment of the tilt-in-space with a minimum amount of effort of caregivers. The angle between the back and seat can be adjusted using the back recline.
Position of the rear wheels
The rear wheels can be mounted in three different horizontal positions, to establish the best position of the center of gravity for the individual user. The frame of Kudu is short and compact which makes it easy to manoeuvre.
Secure and Portable Transportation

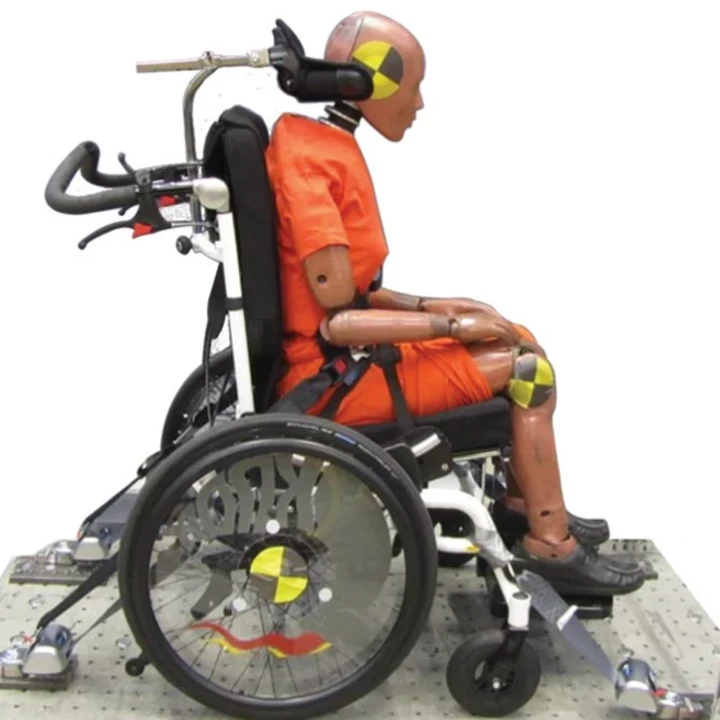

The Kudu complies with ISO 7176-19 for transporting children in motor vehicles (max. 57 kg).
Variants and details
| Kudu Size 1 | Kudu Size 2 | Kudu Size 3 | Kudu Size 4 | |
|---|---|---|---|---|
| Item number | 951xxxxxxx | 952xxxxxxx | 953xxxxxxx | 954xxxxxxx |
| Armrest to seat distance (mm) | 138–198 | 138–198 | 138–198 | 138–198 |
| Backrest angle (°) | (–5)–30 | (–5)–30 | (–5)–30 | (–5)–30 |
| Backrest height (mm) | 370–460 | 400–520 | 430–580 | 430–630 |
| Effective seat depth (mm) | 220–320 | 270–370 | 310–410 | 350–450 |
| Effective seat width (mm) | 260 | 300 | 340 | 380 |
| Folded height (mm) | 625 | 625 | 625 | 625 |
| Folded length (mm) | 825 | 825 | 875 | 875 |
| Footrest to seat distance, centrally mounted (mm) | 160–310 | 160–380 | 260–450 | 260–450 |
| Footrest to seat distance, parted (mm) | – | 250–350 | 300–480 | 300–480 |
| Front location of arm rest structure (mm) | 590 | 590 | 640 | 640 |
| Horizontal location of axle (mm) | 146–196 | 146–196 | 146–196 | 146–196 |
| Leg to seat surface angle, centrally mounted footrest (°) | 55–180 | 55–180 | 55–180 | 55–180 |
| Leg to seat surface angle, parted footrest (°) | 105 | 105 | 105 | 105 |
| Mass device (kg) | 19 | 21 | 23 | 25 |
| Mass of the heaviest part (kg) | 13 | 15 | 17 | 19 |
| Maximum rated load (kg) | 61 | 73 | 85 | 97 |
| Maximum user mass (kg) | 40 | 50 | 60 | 70 |
| Maximum user mass in transportation (kg) | 40 | 50 | 60 | 70 |
| Minimum turning radius (mm) | 823 | 823 | 823 | 823 |
| Overall height to backrest (mm) | 940 | 1000 | 1060 | 1110 |
| Overall height to pushbrace (mm) | 940 | 940 | 940 | 940 |
| Overall length (mm) | 690 | 690 | 740 | 740 |
| Overall width (mm) | 605 | 645 | 685 | 725 |
| Overall width 12" wheels (mm) | 505 | 545 | 585 | 625 |
| Overall width 16" wheels (mm) | 505 | 545 | 585 | 625 |
| Overall width 20/22/24 wheels with camber (mm) | 605 | 645 | 685 | 725 |
| Overall width 20/22/24" wheels without camber (mm) | 500 | 540 | 580 | 620 |
| Required width of right angled corridor (mm) | 1000 | 1000 | 1100 | 1100 |
| Seat plane angle (°) | (–3)–45 | (–3)–45 | (–3)–45 | (–3)–45 |
| Seat surface height at front edge (mm) | 480 | 480 | 480 | 480 |
| Static stability downhill (°) | 10 | 10 | 10 | 10 |
| Static stability sideways (°) | 10 | 10 | 10 | 10 |
| Static stability uphill (°) | 10 | 10 | 10 | 10 |
| Width front wheels (mm) | 550 | 590 | 630 | 670 |
Angles: Back recline (-5° to 30°), Self centering tilt in space (-3° to 45°).
Measurements: The Kudu measurements above are based on the use of 22” rear wheels, 6” front wheels, angle adjustable push braces and parted foot rests. Different settings may result in another set of measurements. To achieve some of the measurements above, slight adjustments might be required. As we supply various types of accessories, the weight is listed without.
